Custom Borosilicate Glass
Qinhuangdao Scinan Specialty Glass Co., Ltd. is a factory of custom Borosilicate glass. Borosilicate float glass is a type of glass that is made by mixing boric acid and silica with other additives to create a unique material with excellent thermal shock resistance, chemical resistance, and mechanical strength. It is commonly used in high-performance applications such as laboratory equipment, cookware, and LED lighting due to its exceptional properties.
Specification
|
Items |
Borosilicate float glass 3.3 |
Borosilicate float glass 4.0 |
|
Introduction |
Borosilicate float glass 3.3 is a material that is truly versatile and widely used. Application: Home appliances, Precision instruments, Semi-conductor technology, Safety protection (bullet-proof glass) and so on. |

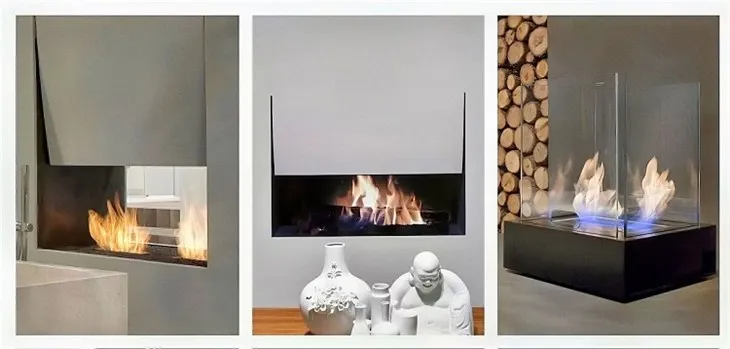

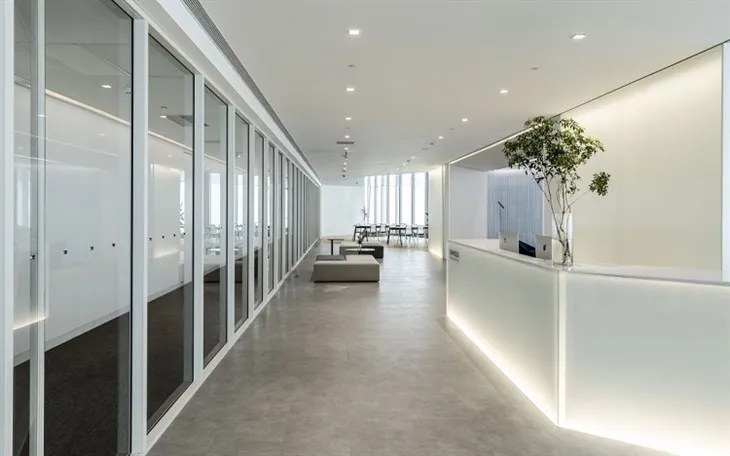

Borosilicate float glass 4.0 is widely used in fire prevention and safety protection. Application: Fireproof glass, Fire partition, Curtain walls, Safety protection (bullet proof glass) and so on. |
|
Important benefits |
• Excellent thermal resistance • Higher transparency • Stable chemical property • Outstanding mechanical strength |
• Excellent ability at thermal shack • Higher softening point • Without self-explosion • Perfect in visual effect Borosilicate 4.0 float glass is eight times harder than ordinary glass but is 10% lighter than ordinary glass. A single piece of the 6mm 4.0 fire glass can withstand fire for 2-3 hours. Thickness:4-12mm. |
|
Specification |
Thermal properties (The following parameters are all average values.) Coefficient of Linear Thermal Expansion (C.T.E) α (20°C ~300°C): 3.3×10-6 K-1 Specific heat capacity cƤ (20-100°C) :0.83kJ/(kg·K) Thermal conductivity λ (90°C):1.2 W/(M·K) Softening Point:820°C Annealing Point:560°C Strain Point: 510°C Density ρ (25°C): 2.23ɡ/cm3 Thickness range: 2mm-25mm Optical index of refraction:1.48 Visible light transmittance(5mm) :92% |
|
Application
Borosilicate glass is commonly used as laboratory utensils and tableware. Compared with ordinary glass, Borosilicate glass has stronger heat resistance and impact resistance because it contains boron and silicon elements, which can increase the hardness and stability of the glass. In addition, Borosilicate glass has a low coefficient of thermal expansion, so it will not deform due to temperature changes. These characteristics make Borosilicate glass very safe and reliable when used in high temperature environments, so it is widely used in laboratories, medical and industrial fields.
Why choose us?
1. The production line control technology is all self-developed, and the key equipment is the most advanced industrial products, which makes it the first choice for customers seeking a reliable partner for borosilicate float glass production.
2. The main products are borosilicate float glass 3.3 and borosilicate float glass 4.0, which integrate the production, processing, sales, and service of borosilicate float glass. The sales network of the company has spread all over the world, making it a top choice for customers seeking high-quality products and services.
3. The ability to provide custom-tailored solutions for its clients’ specific needs, its commitment to quality control, and its dedication to sustainable practices have all added to its standing as a leader in the industry.
4. The modern production facilities and advanced technology ensure that it can meet the diverse needs of its clients, while its strict quality control standards ensure that each product meets the highest standards of quality.
5. The sales team is experienced in providing exceptional service, and its after-sales service team is always available to assist customers with any issues they may encounter. The company’s dedication to customer satisfaction has gained it a loyal customer base that trusts and relies on it for their borosilicate float glass needs.
Send an inquiry on our custom Borosilicate glass today!
